| Brand Name : | CN |
| Model Number : | ABC cable |
| Price : | US $1-50 / Meters | 1000 Meter/Meters (Min. Order) |
| Application | The cable is used for primary and secondary overhead distribution where limited space is available or desirable for rights of way. It is installed as a bare conductor. Covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors. Particularly useful in congested areas such as alleyways or tight corridors. |
| Applicable Standard | ASTM B230,ASTM B231,ASTM B232 ASTM B398,ASTM B399,ASTM B400 |

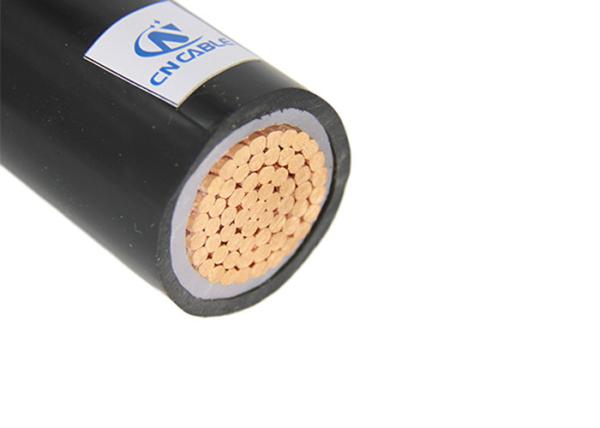

| Cable construction | AAC/AAAC/ACSR Conductor , XLPE/ Insulation , HDPE Outer Jacket |
| Packing Material | Wooden Reel, Iron-wooden Reel, Steel Reel |
| Size | Stranding No. | Conductor dia. | Insulation thickness | Outer sheath thickness | Approx. Cable. Dia. | Approx. Cable Weight | Rated strength |
| AWG/kcmil | No.s | mm | mm | mm | mm | kg/km | KN |
| 4 | 6/1 | 6.35 | 1.9 | 1.9 | 14.0 | 202 | 7.9 |
| 2 | 6/1 | 8.03 | 1.9 | 1.9 | 15.6 | 274 | 12 |
| 1/0 | 6/1 | 10.11 | 1.9 | 1.9 | 17.7 | 379 | 18.5 |
| 2/0 | 6/1 | 11.35 | 1.9 | 1.9 | 19.0 | 451 | 22.4 |
| 3/0 | 6/1 | 12.75 | 1.9 | 1.9 | 20.4 | 539 | 28 |
| 4/0 | 6/1 | 14.30 | 1.9 | 1.9 | 21.9 | 643 | 35.3 |
| 266.8 | 18/1 | 15.47 | 1.9 | 1.9 | 23.1 | 656 | 29.1 |
| 266.8 | 26/7 | 16.31 | 1.9 | 1.9 | 23.9 | 673 | 47.7 |
| 336.4 | 26/7 | 18.29 | 1.9 | 1.9 | 25.9 | 826 | 59.5 |
| 336.4 | 30/7 | 18.82 | 1.9 | 1.9 | 26.4 | 924 | 73.1 |
| 397.5 | 24/7 | 19.61 | 1.9 | 1.9 | 27.2 | 906 | 61.7 |
| 397.5 | 26/7 | 19.89 | 1.9 | 1.9 | 27.5 | 960 | 68.8 |
| 477 | 26/7 | 21.79 | 1.9 | 1.9 | 29.4 | 1134 | 82.3 |
| 477 | 30/7 | 22.43 | 1.9 | 1.9 | 30.0 | 1271 | 100.5 |
| 556.5 | 24/7 | 23.22 | 1.9 | 1.9 | 30.8 | 1232 | 83.6 |
| 556.5 | 26/7 | 23.55 | 1.9 | 1.9 | 31.2 | 1307 | 95.4 |
| 636 | 24/7 | 24.82 | 1.9 | 1.9 | 32.4 | 1393 | 92.9 |
| 636 | 26/7 | 25.15 | 1.9 | 1.9 | 32.8 | 1478 | 106.4 |
| 795 | 26/7 | 28.14 | 2.0 | 1.9 | 36.3 | 1836 | 133 |
| 795 | 45/7 | 27.00 | 2.0 | 2.0 | 35.1 | 1534 | 93.3 |
| Size | Stranding No. | Conductor dia. | Insulation thickness | Outer sheath thickness | Approx. Cable. Dia. | Approx. Cable Weight | Rated strength |
| AWG/kcmil | No.s | mm | mm | mm | mm | kg/km | KN |
| 1/0 | 7 | 8.53 | 1.9 | 1.9 | 16.2 | 292 | 8 |
| 2/0 | 7 | 9.55 | 1.9 | 1.9 | 17.2 | 342 | 10 |
| 3/0 | 7 | 10.74 | 1.9 | 1.9 | 18.4 | 405 | 12.2 |
| 4/0 | 7 | 12.07 | 1.9 | 1.9 | 19.7 | 484 | 15.3 |
| 266.8 | 19 | 13.64 | 1.9 | 1.9 | 21.3 | 576 | 19.9 |
| 336.4 | 19 | 15.32 | 1.9 | 1.9 | 22.9 | 693 | 24.6 |
| 397.5 | 19 | 16.74 | 1.9 | 1.9 | 24.4 | 796 | 28.4 |
| 477 | 19 | 18.34 | 1.9 | 1.9 | 26.0 | 927 | 33.4 |
| 556.5 | 37 | 19.81 | 1.9 | 1.9 | 27.4 | 1054 | 39.8 |
| 636 | 37 | 21.21 | 1.9 | 1.9 | 28.8 | 1182 | 45.6 |
| Size | Stranding No. | Conductor dia. | Conductor Shield Thickness | Insulation thickness | Outer sheath thickness | Approx. Cable. Dia. | Approx. Cable Weight | Rated strength |
| AWG/kcmil | No.s | mm | mils | mm | mm | mm | kg/km | KN |
| 4 | 6/1 | 6.35 | 0.4 | 1.9 | 1.9 | 14.7 | 225 | 7.9 |
| 2 | 6/1 | 8.03 | 0.4 | 1.9 | 1.9 | 16.4 | 301 | 12 |
| 1/0 | 6/1 | 10.11 | 0.4 | 1.9 | 1.9 | 18.5 | 414 | 18.5 |
| 2/0 | 6/1 | 11.35 | 0.4 | 1.9 | 1.9 | 19.7 | 491 | 22.4 |
| 3/0 | 6/1 | 12.75 | 0.4 | 1.9 | 1.9 | 21.1 | 585 | 28 |
| 4/0 | 6/1 | 14.30 | 0.4 | 1.9 | 1.9 | 22.7 | 701 | 35.3 |
| 266.8 | 18/1 | 15.47 | 0.4 | 1.9 | 1.9 | 23.9 | 705 | 29.1 |
| 266.8 | 26/7 | 16.31 | 0.4 | 1.9 | 1.9 | 24.7 | 823 | 47.7 |
| 336.4 | 18/1 | 17.37 | 0.4 | 1.9 | 1.9 | 25.8 | 848 | 36.7 |
| 336.4 | 26/7 | 18.29 | 0.4 | 1.9 | 1.9 | 26.7 | 996 | 59.5 |
| 336.4 | 30/7 | 18.82 | 0.4 | 1.9 | 1.9 | 27.2 | 1391 | 73.1 |
| 397.5 | 18/1 | 18.87 | 0.4 | 1.9 | 1.9 | 27.3 | 972 | 42 |
| 397.5 | 24/7 | 19.61 | 0.4 | 1.9 | 1.9 | 28.0 | 1052 | 61.7 |
| 397.5 | 26/7 | 19.89 | 0.4 | 1.9 | 1.9 | 28.3 | 1146 | 68.8 |
| 477 | 24/7 | 21.49 | 0.4 | 1.9 | 1.9 | 29.9 | 1226 | 72.6 |
| 477 | 26/7 | 21.79 | 0.4 | 1.9 | 1.9 | 30.2 | 1338 | 82.3 |
| 477 | 30/7 | 22.43 | 0.4 | 1.9 | 1.9 | 30.8 | 1896 | 100.5 |
| 556.5 | 18/1 | 22.33 | 0.5 | 1.9 | 1.9 | 31.0 | 1301 | 57.9 |
| 556.5 | 24/7 | 23.22 | 0.5 | 1.9 | 1.9 | 31.9 | 1412 | 83.6 |
| 556.5 | 26/7 | 23.55 | 0.5 | 1.9 | 1.9 | 32.2 | 1542 | 95.4 |
| 636 | 18/1 | 23.88 | 0.5 | 1.9 | 1.9 | 32.5 | 1786 | 66.3 |
| 636 | 26/7 | 25.15 | 0.5 | 1.9 | 1.9 | 33.8 | 2043 | 106.4 |
|
|
